BH的研发人员 凭借领先的技术实力,专注于新产品的开发及量产研究,
致力于改善BH的产品和服务。
Normal | |||||
---|---|---|---|---|---|
Mechanical Drill Normal Plating | Laser Via hole Normal Plating | Laser Via & Via on Via Via Fill Plating | |||
|
|
|
|||
Special | |||||
Though Hole Via Filling | Ultra Micro Via Normal & Via Filling | ||||
|
|
Normal | |
---|---|
Mechanical Drill Normal Plating | |
|
|
Laser Via hole Normal Plating | |
|
|
Laser Via & Via on Via Via Fill Plating | |
|
|
Special | |
Though Hole Via Filling | |
|
|
Ultra Micro Via Normal & Via Filling | |
|

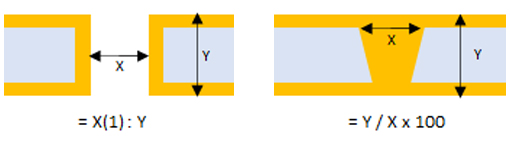

※ Aspect Ratio
量产水平 |
---|

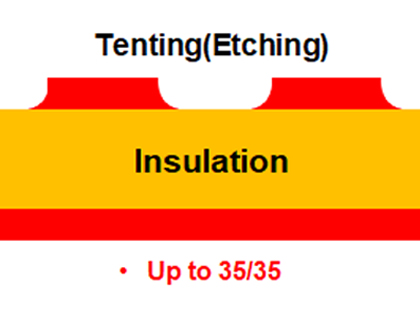

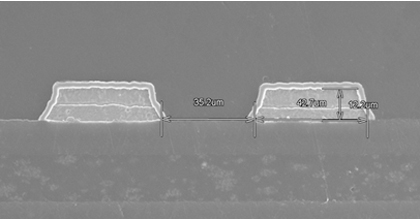

[ Tenting (Etching Process) ] |
|
R&D |
---|

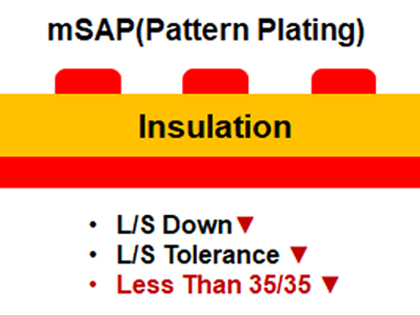

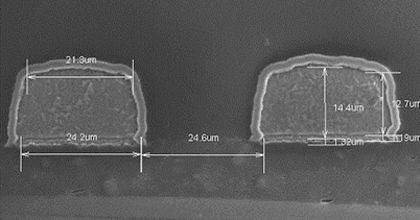

[ mSAP ( Modified Semi-additive Process) ] |
|
ACF Bonder / PEEL / Plasma | 延伸率管理 |
---|---|
ACF Bonder / PEEL / Plasma |
---|

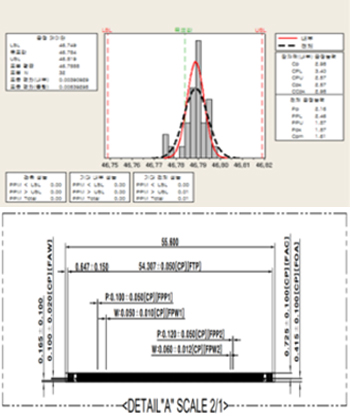

延伸率管理 |

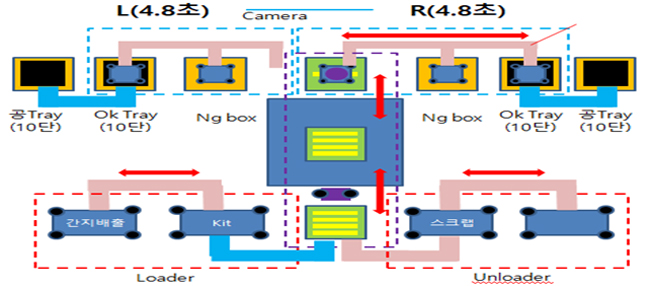

设备平面图 | 设备Flow | |||
---|---|---|---|---|
自动投放 |
自动冲压 |
自动筛选 |
自动排放 |
设备平面图 | |||
---|---|---|---|
设备Flow | |||
自动投放 |
自动冲压 |
自动筛选 |
自动排放 |
量产水平 | |
---|---|
Land | 300㎛ |
Via | 100㎛ |

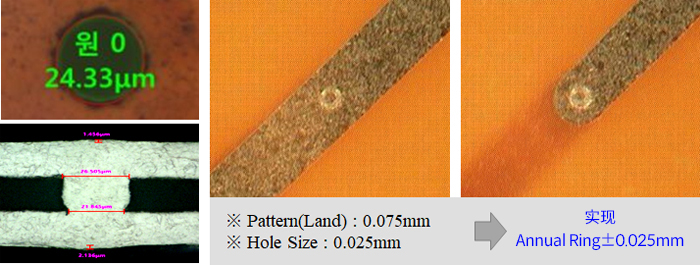

量产水平 | |
---|---|
Land | 75㎛ |
Via | 25㎛ |

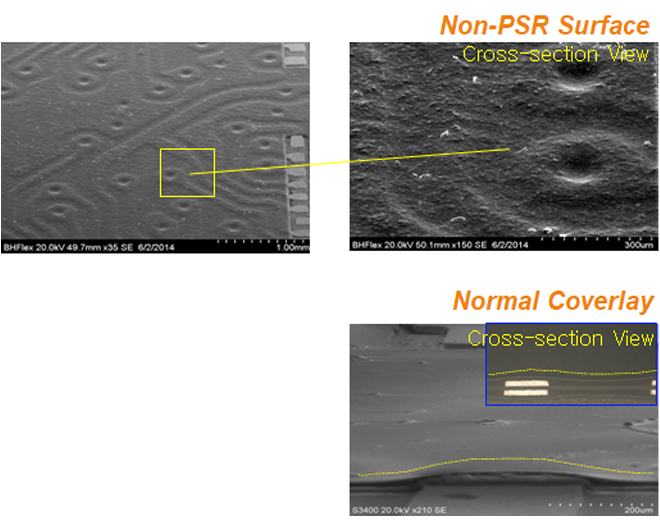

BH R&D Technology : Landless FPC |
---|
类别 | Fine Pattern Min Line/Space(um) | Small Via & Pad Annual Ring(um) | SR Tolerance偏心公差(um) | a lot of Via Hole Hole数(EA/sqm) |
---|---|---|---|---|
Normal Application | 45/45 | 100 | 40 | 10~30만 |
Micro LED | 35/35↓ | 30↓ | 20 | 100↑ |
ETC |
类别 | Fine Pattern Min Line/Space(um) | Small Via & Pad Annual Ring(um) |
---|---|---|
Normal Application | 45/45 | 100 |
Micro LED | 35/35↓ | 30↓ |
ETC | ||
类别 | SR Tolerance偏心公差(um) | a lot of Via Hole Hole数(EA/sqm) |
Normal Application | 40 | 10~30만 |
Micro LED | 20 | 100↑ |
ETC |

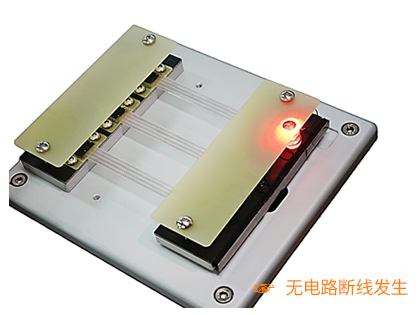

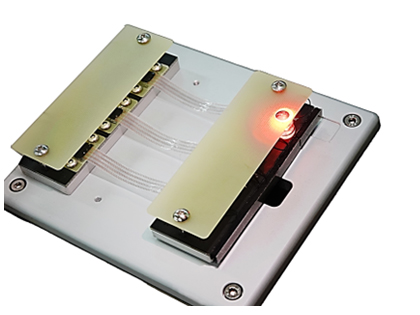

Stretchable Test | |
---|---|
